Description

Finisar SW 4x Channel 850NM SFP Fiber 8Gb Transceiver Optical

Temperature Range:

Commercial -5° to 70°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

20 nm (840-860 nm)

Rx Wavelength Bandwidth:

20 nm (840-860 nm)

Minimum Transmitting Power:

-6.5 dB

Maximum Transmitting Power:

1 dB

Receiver Sensitivity:

-11.1 dBm

Model

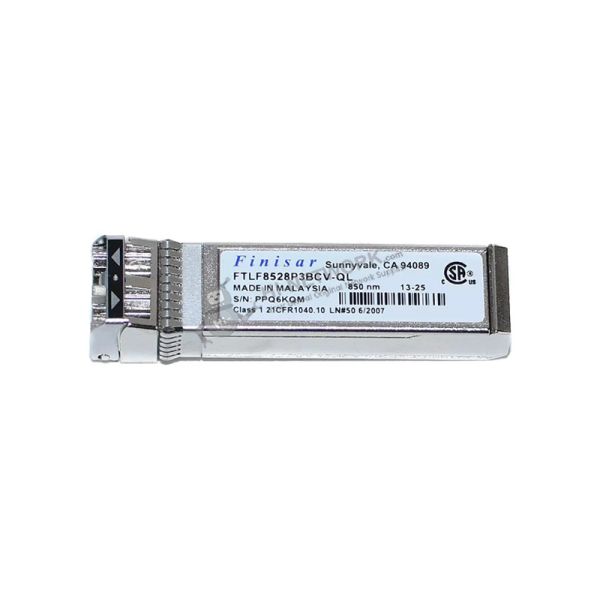

FTLF8528P3BCV-QL

Description

Finisar SW 4x Channel 850NM SFP Fiber 8Gb Transceiver Optical

Media Type:

Multi-Mode Fiber (MMF)

TX Wavelength:

850 nm.

RX Wavelength:

850 nm.

Minimum Optical Budget:

4.6 dB

Maximum Distance:

300m

Supported Data Rate:

1.0625-10.52 Gbps

Supported Applications:

10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps)

DDM/DOM:

Support

Temperature Range:

Commercial -5° to 70°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

20 nm (840-860 nm)

Rx Wavelength Bandwidth:

20 nm (840-860 nm)

Minimum Transmitting Power:

-6.5 dB

Maximum Transmitting Power:

1 dB

Receiver Sensitivity:

-11.1 dBm

Receiver Overload:

-1 dBm

Dispersion:

110 ps/nm

Transmitter Type:

VSCEL Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

MAXIM, MINDSPEED, SEMTECH

Compliance:

CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA

Transceiver Type:

SFP+
