Finisar FTLF1421P1BTL 2.67G 1310nm 15km Duplex LC Connector SFP Optical Transceiver Module

The FTLF1421P1BTL is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP+) optical module. It provides increased port density and total system cost savings. The QSFP+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate data rate of 40Gbps over 100 meters of OM3 multi-mode fiber. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP+ module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. Electrical connection is achieved through a z-pluggable 38-pin IPASS® connector. The module operates via a single +3.3V power supply. LVCMOS/LVTTL global control signals, such as Module Present, Reset, Interrupt and Low Power Mode, are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals, and to receive digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility. The FTLF1421P1BTL is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

Quick Specification

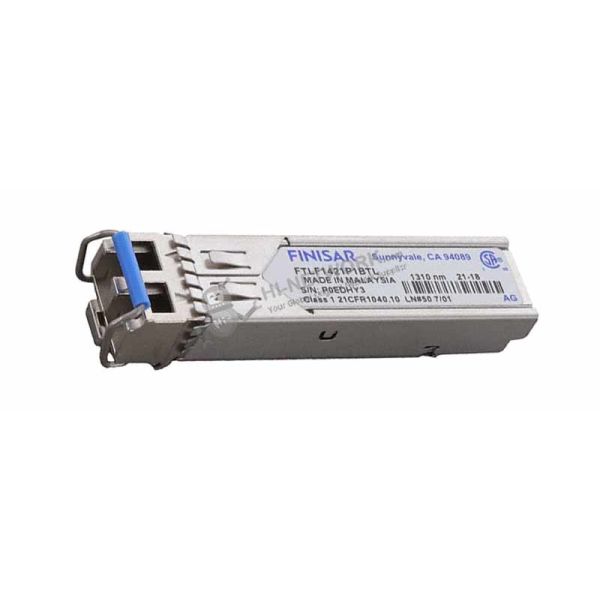

Figure 1 shows the appearance of FTLF1421P1BTL.

Specific Data Sheet:

2.67G finisar sfp transceiver

Pluggable finisar sfp transceiver

finisar ftlf1421p1btl

15km 2.67G Digital Pluggable Finisar Sfp Transceiver FTLF1421P1BTL Images
