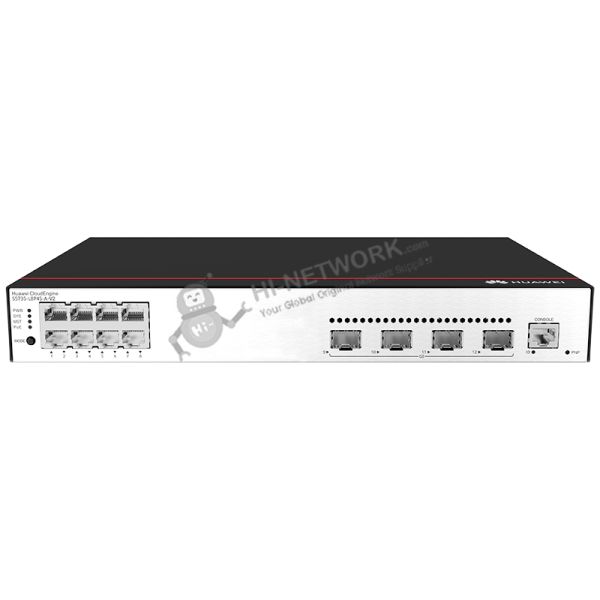

S5735-L8P4S-A-V2 Specification
|
|
Model
|
S5735-L8P4S-A-V2
|
|
Part Number
|
98011986
|
|
Description
|
S5735-L8P4S-A-V2 (8*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, built-in AC power)
|
|
Dimensions without packaging (H x W x D) [mm(in.)]
|
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.)
|
|
Dimensions with packaging (H x W x D) [mm(in.)]
|
90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.)
|
|
Chassis height [U]
|
1 U
|
|
Weight without packaging [kg(lb)]
|
2.23 kg (4.92 lb)
|
|
Weight with packaging [kg(lb)]
|
3.05 kg (6.72 lb)
|
|
Typical power consumption [W]
|
19.99 W
|
|
Typical heat dissipation [BTU/hour]
|
68.21 BTU/hour
|
|
Maximum power consumption [W]
|
Without PoE: 25.09 W
Full PoE load: 166.65 W (PoE: 125 W)
|
|
Maximum heat dissipation [BTU/hour]
|
Without PoE: 85.61
Full PoE load: 568.63
|
|
Static power consumption [W]
|
17.19 W
|
|
MTBF [years]
|
69.71 years
|
|
MTTR [hours]
|
2 hours
|
|
Availability
|
> 0.99999
|
|
Noise at normal temperature (acoustic power) [dB(A)]
|
47 dB(A)
|
|
Noise at normal temperature (acoustic pressure) [dB(A)]
|
35 dB(A)
|
|
Number of card slots
|
0
|
|
Number of power slots
|
0
|
|
Number of fans modules
|
1
|
|
Redundant power supply
|
Not supported
|
|
Long-term operating temperature [°C(°F)]
|
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
|
|
Restriction on the operating temperature variation rate [°C(°F)]
|
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F).
|
|
Storage temperature [°C(°F)]
|
–40°C to +70°C (–40°F to +158°F)
|
|
Long-term operating relative humidity [RH]
|
5% RH to 95% RH (non-condensing)
|
|
Long-term operating altitude [m(ft.)]
|
0–5000 m (0–16404 ft.)
|
|
Storage altitude [m(ft.)]
|
0-5000 m (0-16404 ft.)
|
|
Power supply mode
|
AC built-in
|
|
Rated input voltage [V]
|
AC input: 100–240 V AC; 50/60 Hz
|
|
Input voltage range [V]
|
AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz
|
|
Maximum input current [A]
|
3 A
|
|
Memory
|
2 GB
|
|
Flash memory
|
Physical space: 1 GB
|
|
Console port
|
RJ45
|
|
Eth Management port
|
Not supported
|
|
USB
|
Not supported
|
|
RTC
|
Not supported
|
|
RPS input
|
Not supported
|
|
Service port surge protection [kV]
|
Common mode: ±7 kV
|
|
Power supply surge protection [kV]
|
Differential mode: ±6 kV; common mode: ±6 kV
|
|
Ingress protection level (dustproof/waterproof)
|
IP20
|
|
Types of fans
|
Built-in
|
|
Heat dissipation mode
|
Air cooling for heat dissipation, intelligent fan speed adjustment
|
|
Airflow direction
|
Air intake from left and front, air exhaustion from right
|
|
PoE
|
Supported
|
|
Certification
|
EMC certification
Safety certification
Manufacturing certification
|
