Huawei CloudEngine Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports

Name: Huawei CloudEngine Switch S5735SL24FT4SA with 12 10100BaseTx ports 12 101001000BaseT ports and 4 GE SFP ports
Brand: Huawei
Price: 513 USD

Wholesale Huawei CloudEngine Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports from china suppliers

Brand Name : Huawei

Model Number : S5735S-L24FT4S-A

MOQ : 1

Price : $513

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 550pcs

Delivery Time : 3-5 days

Description : S5735S-L24FT4S-A (12*10/100BASE-TX ports, 12*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)

Condition : Original New; In stock

Contact Now

Huawei Switch S5735S-L24FT4S-A (98010917)

S5735S-L24FT4S-A is the Huawei S5735-L switch with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, 4 × GE SFP ports. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

Quick Specification

Table 1 shows the Quick Specification.

Model	S5735S-L24FT4S-A
Part Number	98010917
Software Version	V200R019C00 and later versions
Description	S5735S-L24FT4S-A (1210/100BASE-TX ports, 1210/100/1000BASE-T ports, 4*GE SFP ports, AC power)
Fixed Ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+	Not Supported

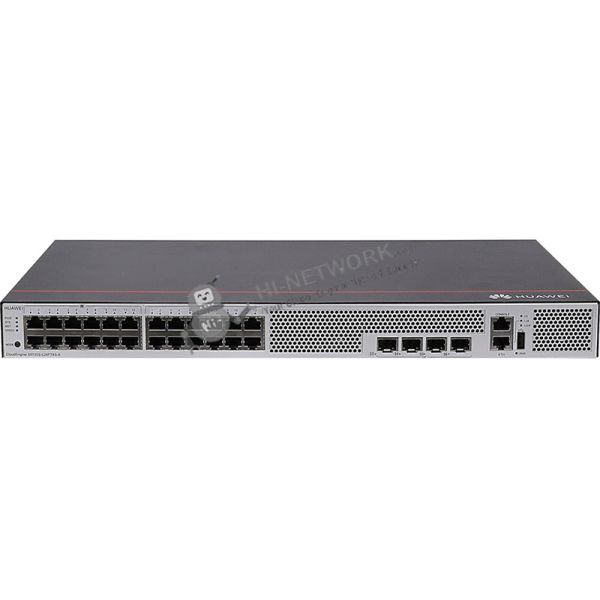

Figure 1 shows the appearance of S5735S-L24FT4S-A.

Huawei CloudEngine Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports

Product Details

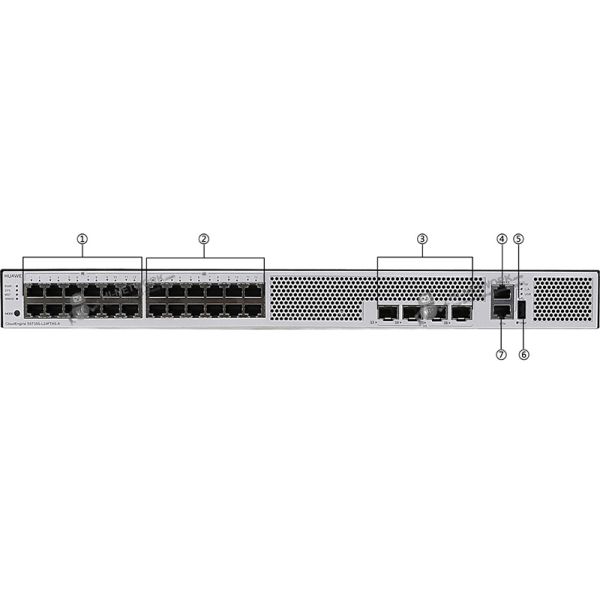

Figure 2 shows the front ports of S5735S-L24FT4S-A.

Huawei CloudEngine Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports

Note:

(1)	Twelve 10/100BASE-TX ports	(5)	One USB port
(2)	Twelve 10/100/1000BASE-T ports	(6)	One PNP button
(3)	Four 1000BASE-X ports	(7)	One ETH management port
(4)	One console port

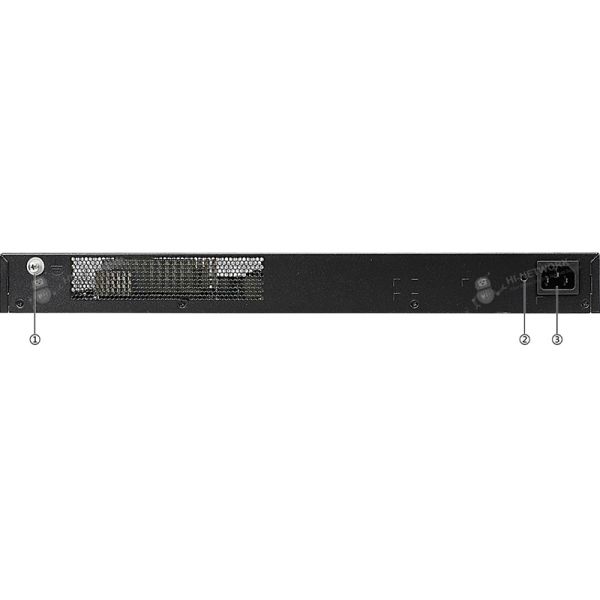

Figure 3 shows the back view of S5735S-L24FT4S-A.

Huawei CloudEngine Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports

Note:

(1)	Ground screw
(2)	Jack for AC power cable locking strap
(3)	AC socket

Supported Transceivers

Table 2 shows the recommended models.

Model	Description
OMXD30000	Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
OMXD30009	Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)

Compare to Similar Items

Table 3 shows the comparison.

Model	S5735S-L48P4X-A	S5735S-L24FT4S-A
Fixed Ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, 4 × GE SFP ports
PoE+	Supported	Not Supported
