Huawei Switch S5700-24TP-SI-AC with 256 Gbit/s Switching Capacity 36 Mpps Forwarding Performance and Built-in Fans for Cooling

Name: Huawei Switch S570024TPSIAC with 256 Gbits Switching Capacity 36 Mpps Forwarding Performance and Builtin Fans for Cooling
Brand: Huawei
Price: 768 USD

Wholesale Huawei Switch S5700-24TP-SI-AC with 256 Gbit/s Switching Capacity 36 Mpps Forwarding Performance and Built-in Fans for Cooling from china suppliers

Brand Name : Huawei

Model Number : S5700-24TP-SI-AC

MOQ : 1

Price : $768

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 200pcs

Delivery Time : 3-5 days

Description : S5700-24TP-SI-AC (24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, AC 110/220V)

Condition : Original New; In stock

Contact Now

Huawei Switch S5700-24TP-SI-AC (02352360)

Huawei S5700-SI series are gigabit Layer 3 Ethernet switches. The S5700-24TP-SI-AC supports 20 10/100/1000BASE-T ports and 4 combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X).

Quick Specification

Table 1 shows the quick specification.

Model	S5700-24TP-SI-AC
Part Number	02352360
Description	24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, AC 110/220V, 1 extension slot
Ports	24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP ports
Forwarding Performance	36 Mpps
Switching Capacity	256 Gbit/s
Stack	Supported by stack card
Stack Ports	Two stack ports available on each stack card
Power	AC 110/220V
Heat Dissipation	Built-in fans for intelligent air cooling
Memory (RAM)	256 MB
Flash	32 MB
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
Weight	3.9 Kg

Figure 1 shows the appearance of S5700-24TP-SI-AC.

Huawei Switch S5700-24TP-SI-AC with 256 Gbit/s Switching Capacity 36 Mpps Forwarding Performance and Built-in Fans for Cooling

Product Details

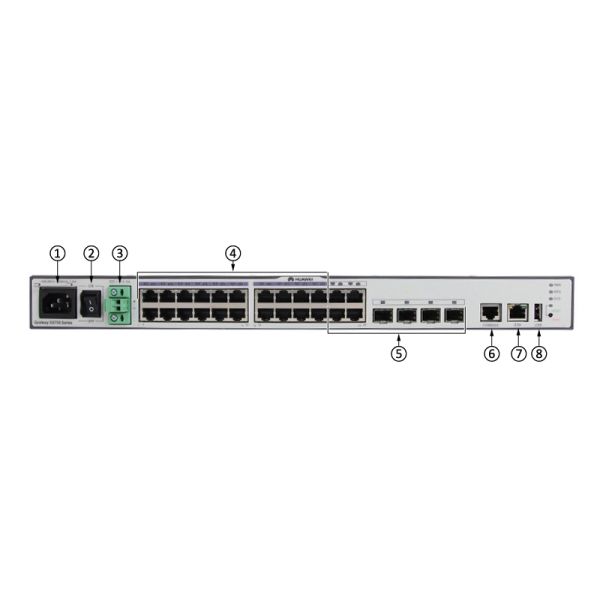

Figure 2 shows the front panel of S5700-24TP-SI-AC.

Huawei Switch S5700-24TP-SI-AC with 256 Gbit/s Switching Capacity 36 Mpps Forwarding Performance and Built-in Fans for Cooling

Note:

(1)	AC socket	(5)	Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)
(2)	Power switch	(6)	One console port
(3)	Backup power socket	(7)	ETH management port
(4)	20 × 10/100/1000BASE-T ports	(8)	USB port

Figure 3 shows the back panel of S5700-24TP-SI-AC.

Huawei Switch S5700-24TP-SI-AC with 256 Gbit/s Switching Capacity 36 Mpps Forwarding Performance and Built-in Fans for Cooling

Note:

(1)

ESD jack

(2)

Rear card slot

The Transceiver

Table 2 shows the recommended transceivers.

Model	Description
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

Compare to Similar Items

Table 3 shows the comparison of Huawei S5700-24TP-SI-AC and S5700-24TP-PWR-SI.

Models	S5700-24TP-SI-AC	S5700-24TP-PWR-SI
Ports	24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP ports	20 × PoE+ 10/100/1000BASE-T ports Four combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X)
PoE Supported	Not Supported	Yes
Software Version	Standard	Standard
