Huawei Switch S5710-108C-PWR-HI with 4 Interface Slots 1024 Gbit/s Switching Capacity and 504 Mpps Forwarding Performance

Name: Huawei Switch S5710108CPWRHI with 4 Interface Slots 1024 Gbits Switching Capacity and 504 Mpps Forwarding Performance
Brand: Huawei
Price: 1837 USD

Wholesale Huawei Switch S5710-108C-PWR-HI with 4 Interface Slots 1024 Gbit/s Switching Capacity and 504 Mpps Forwarding Performance from china suppliers

Brand Name : Huawei

Model Number : S5710-108C-PWR-HI

MOQ : 1

Price : $1837

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 180pcs

Delivery Time : 3-5 days

Description : S5710-108C-PWR-HI(48 Ethernet 10/100/1000 PoE+ ports,8 10 Gig SFP+,with 4 interface slots,without power module)

Condition : Original New; In stock

Contact Now

Huawei Switch S5710-108C-PWR-HI (02354043)

The S5710-108C-PWR-HI is advanced Ethernet switch based on new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). With 48 GE ports (10/100/1000Base-T) and 8 x 10 GE SFP+ ports, it provides a large switching capacity, high-density GE interfaces for users. What's more, it can be equipped with multiple types of card modules to meet different demands of users, and the PoE function ensures constant large power supply. All these features make the S5710-108C-PWR-HI the best choice as an access switch on large and medium-sized campus networks or data centers and aggregation switch on small campus networks. The S5710-108C-PWR-HI integrates many advanced technologies in terms of reliability, security, and energy conservation in order to help enterprise customers build a next-generation IT network.

Quick Specification

Table 1 show the quick specification.

Model	S5710-108C-PWR-HI
Part Number	02354043
Ports	- 48 x 10/100/1,000 BASE-T ports, - 8 x 10 GE SFP+ ports
Extended Slots	Three slots on the front panel, One slot at the real panel
Memory (RAM)	1 GB
Flash	200 MB
MAC Address Table Size	456 MAC
Subcard Supported	- Three slots on the front panel: support 16 x 1,000 Base-X SFP subcard and 16 x 10/100/1,000 Base-T subcard - One slot at the real panel: supports 4 x 40 GE QSFP+ subcard and 4 x 10 GE SFP+ subcard
Voltage Required	AC: Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz
Power Device	Double swappable AC power supplies
Power Consumption Operational	< 1,680W (Device: 240W, PoE: 1440W)
Forwarding performance	504 Mpps
Switching capacity	1024 Gbit/s
Dimensions (W x D x H)	442 mm x 470 mm x 87.2 mm
Package Weight	15.3 kg
RPS	Not supported

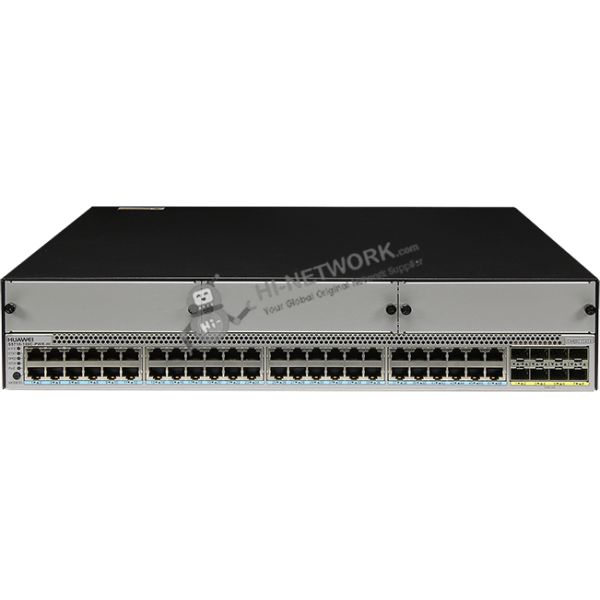

Figure 1 shows the appearance of S5710-108C-PWR-HI.

Huawei Switch S5710-108C-PWR-HI with 4 Interface Slots 1024 Gbit/s Switching Capacity and 504 Mpps Forwarding Performance

Product Details

Figure 2 shows the front panel of S5710-108C-PWR-HI.

Huawei Switch S5710-108C-PWR-HI with 4 Interface Slots 1024 Gbit/s Switching Capacity and 504 Mpps Forwarding Performance

Note:

(1)	Forty-eight PoE+ 10/100/1000BASE-T ports	(4)	Front card slot 2
(2)	Eight 10GE SFP+ ports	(5)	Front card slot 1
(3)	Front card slot 3

Figure 3 shows the back panel of S5710-108C-PWR-HI.

Huawei Switch S5710-108C-PWR-HI with 4 Interface Slots 1024 Gbit/s Switching Capacity and 504 Mpps Forwarding Performance

Note:

(6)	One console port	(12)	Fan slot 4
(7)	One ETH management port	(13)	Power module slot 1
(8)	One USB port	(14)	Power module slot 2
(9)	Fan slot 1	(15)	Ground screw
(10)	Fan slot 2	(16)	ESN label
(11)	Fan slot 3	(17)	Rear card slot

* Ground screw is used with a ground cable.

* You can draw ESN label out to view the ESN and MAC address of the switch.

Recommended Modules

Table 2 shows the recommended modules.

Category	Model	Description
Power Module	W0PSA1701	170W AC Power Module (Used In HI Series)
Power Module	PAC-350WA-B	350W AC Power Module (Back to Front, Power panel side exhaust)
Optical Transceivers	OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
	OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)
	SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
	eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)
	SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
	S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
	S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)
Copper Transceivers	SFP-1000BaseT	1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate,100m
Card	ES5D21X04S00	4 10 Gig SFP+ Interface Card(used in S5710HI series)
Card	ES5D21L04Q00	4 40 Gig QSFP+ Interface Card(used in S5710HI series)

Compare with Similar Item

Table 3 shows the comparison of S5710-108C-PWR-HI and S5700-28C-HI-24S.

Models	S5710-108C-PWR-HI	S5700-28C-HI-24S
Fixed Ports	48 x 10/100/1,000 BASE-T, 8 x 10 GE SFP+	24 x 100/1,000 Base-X
Extended Slots	4 extended slots	1 extended slot
Power Supply	Double swappable AC power supplies	Double hot-swappable AC
Forwarding Performance	504 Mpps	96 Mpps
Switching Capacity	1024 Gbit/s	256 Gbit/s
Power Consumption	< 1,680W (Device: 240W, PoE: 1440W)	<80W
